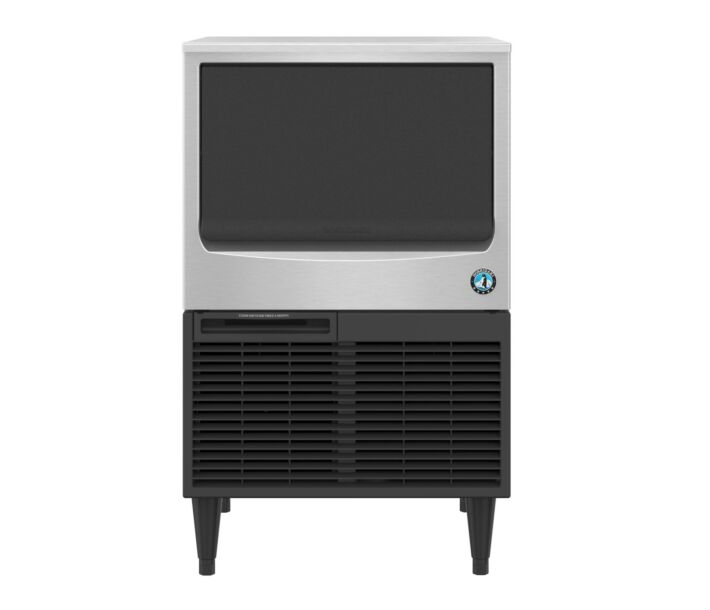

Hoshizaki KM-161BAJ 24" Air-Cooled Undercounter Ice Machine - 163 lb.
Hoshizaki KM-161BAJ 24" Air-Cooled Undercounter Ice Machine - 163 lb.
As low as CAD $265.58/mo. with EconoLease. Learn more
- Produces 163 lbs of crescent cubed ice per day
- Stores up to 78 lbs of ice
- Ideal for small bars, hotel lobbies, and office break rooms
- Features CycleSaver™ design and EverCheck™ alert system
Certifications
Resources and Download
24" Air-Cooled Undercounter Ice Machine - 163 lb.
The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft³ average density of ice. Replaces KM-160BAJ.
FEATURES:
- Dimensions: 23-3/4″ W x 28″ D x 39″ H
- Up to 163 lbs of ice produced per 24 hours
- Up to 78 lbs of built-in storage capacity (2.6ft3)
- Produces crescent-shaped ice cubes
- Slide in the door with durable stainless steel exterior
- Front in, front out airflow
- EverCheck™ alert system
- CycleSaver™ design
- Slide indoor, ice bin opening is ADA compliant
- R-134a refrigerant (7.4 oz. / 210 g)
- Heat Rejection:3050 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7.1 amps (15 Amp Max fuse)
- 8.6 kwh/100 lbs.@ 90/70
- Single-phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to a longer unit life span
- Three Years: Parts & Labor warranty on the entire machine.
- Five Years: Parts & Labor warranty on evaporator.
UPC: 62828801150002601
Specifications
| Country of Manufacture | United States |
|---|---|
| Brand | Hoshizaki |
| Product Type | Ice Machine with Build in Bin |
| MFR # | KM-161BAJ |
| Previous Model | KM-160BAJ |
| Voltage | 115V |
| Hertz | 60 |
| Phase | 1 |
| Capacity | 2.6 cu. ft. / 78 lbs |
| Production Capacity | Up to 163 lbs of cubed ice per 24 hours |
| compressor location | Bottom |
| Refrigerant | R134A |
| Temperature Range | 45 to 100 degree F |
| NEMA | 5-15P |
| Amps | 7.1 |
| Exterior Material | Stainless Steel |
| Total Width | 24.26" |
| Total Height | 39" |
| Total Depth | 28" |
| Net Weight | 126 lbs |
| Warranty | 3-year Parts & Labor/5-year Compressor and Evaporator |
