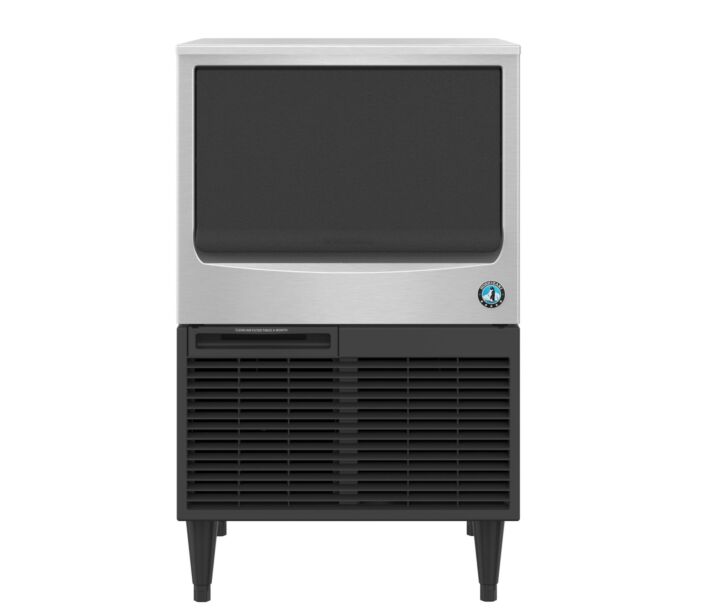

Hoshizaki KM-160BAJ 24" Air-Cooled Undercounter Ice Machine - 163 lb.

24" Air-Cooled Undercounter Ice Machine - 163 lb.

The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft³ average density of ice. Replaces KM-160BAJ.

FEATURES:

• Dimensions: 23-3/4″ W x 28″ D x 39″ H
• Up to 163 lbs of ice produced per 24 hours
• Up to 78 lbs of built-in storage capacity (2.6ft3)
• Produces crescent-shaped ice cubes
• Slide in the door with durable stainless steel exterior
• Front in, front out airflow
• EverCheck™ alert system
• CycleSaver™ design
• Slide indoor, ice bin opening is ADA compliant
• R-134a refrigerant (7.4 oz. / 210 g)
• Heat Rejection:3050 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 7.1 amps (15 Amp Max fuse)
• 8.6 kwh/100 lbs.@ 90/70
• Single-phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to a longer unit life span
• Three Years: Parts & Labor warranty on the entire machine.
• Five Years: Parts & Labor warranty on evaporator.
