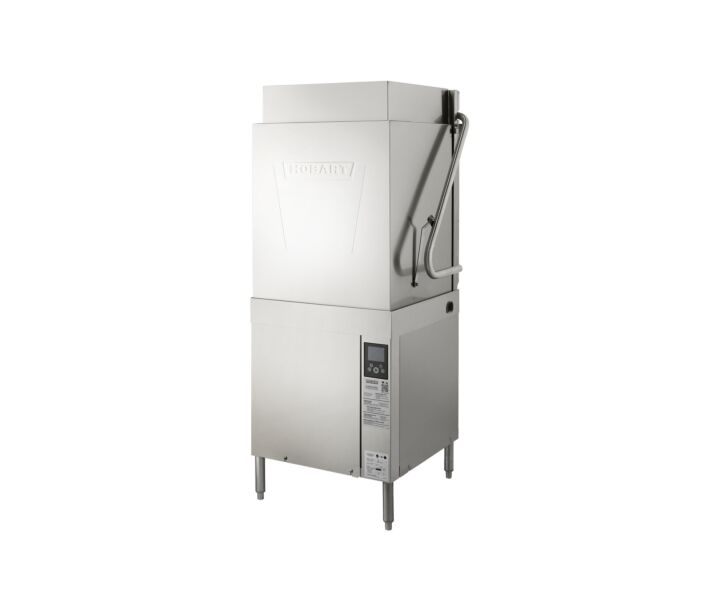

Hobart AM16VLT-BAS-2 High-Temp Door-Type Tall Chamber (27") Ventless Dishwasher Up to 40 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph)
SKU
27000-095
New
Free Shipping
Hobart AM16VLT-BAS-2 High-Temp Door-Type Tall Chamber (27") Ventless Dishwasher Up to 40 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph)
SKU
27000-095
CAD $42,494.73
As low as CAD $1,525.56/mo. with EconoLease. Learn more
Have Questions? Talk to our experts.
Product Highlights
Hobart AM16VLT-BAS-2 High-Temp Door-Type Tall Chamber (27") Ventless Dishwasher Up to 40 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph) Canada
- 0.67 gallons per rack pumped final rinse
- 40 racks per hour – hot water sanitizing
- NSF Certified for cleaning pots and pans, and dishes and glasses
- Smart Touchscreen provides simple & intuitive operation
- Timed wash cycles for 1, 2, 4 or 6 minutes
- 27″ door opening for 18″ x 26″ sheet pans or 60-quart mixing bowl
- Stainless steel construction for long life
- Delime cycle and service diagnostics
- Sheet pan rack standard
- ENERGY STAR® rated
- The AM16 has a configuration available to suit your unique needs
Product Files
Product Overview
For facilities that demand high throughput yet have limited utility or exhaust infrastructure, the AM16VLT-ADV provides a smart solution. Its advanced features includiing the low-water usage, energy recovery systems, digital connectivity and more, make it both cost-efficient and operationally intelligent. Its durable construction and designed-for-volume wash cycles also ensure it can handle demanding commercial dishroom environments.
The door opening measures 27", allowing accommodation of 18"x26" sheet pans or a 60-quart mixing bowl—making the machine versatile for menus that go beyond standard dish loads.
Options & Accessories (Available at extra cost)
- Peg, combination and wine rack
- ASR left-hand conversion kit
- Chemical pumps
- Splash shield for corner installations
- Flanged and seismic feet
- Water hammer arrestor kit
- Rapid fill kit
- Prison package
- Marine package
Notes
- All dimensions taken from floor line may increase 7/8" or decrease 3/8" depending on leg adjustment.
- Vent hood (if required) to provide a minimum 450 CFM exhaust (ref installation instructions).
- Net weight of machine including booster: 410 lbs.
- Domestic shipping weight including booster: 430 lbs.
- Size of racks – 19 3⁄4" x 19 3⁄4"
Plumbing Notes
- Water hammer arrestor (meeting ASSE-1010 standard or equivalent) to be supplied (by others) in common water supply line at service connection.
- Recommended water hardness to be 3 grains or less for best results.
- This is a pumped rinse machine. Pressure regulating valve is not necessary on hot or cold lines
UPC: 62828801270000952
Specifications
Hobart AM16VLT-BAS-2 High-Temp Door-Type Tall Chamber (27") Ventless Dishwasher Up to 40 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph) Canada
| Manufacturing origin | United States |
|---|---|
| MFR # | AM16VLT-BAS-2 |
| Brand | Hobart |
| Net Weight | appx. 400 lbs |
| Total Depth | 32 1/4" |
| Total Width | 29 13/16" |
| Total Height | 67 5/8" (90 5/8" at max open door height) |
| Capacity | 10.5 U.S. Gallons Wash Tank Capacity |
| NEMA | Barewire - Needs a certified eletrician to set up, field convertible to Single phase |
| Amps | 53.5 A (Electric Heat Requires 26.9 A, and Booster & Controls requres 26.8 A when field converted to 3 Phase Dual Point) |
| Horsepower | 0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 HP (Drain Pump); 0.05 HP (Blower) |
| Hertz | 60 |
| Voltage | 208-240V |
| Phase | 3 (Field convertible to 1) |
| Door Style | Solid Door |
| Door Type | Vertical lift hood |
| Drain Size | Includes machine drain & drain water tempering (LH ASR accessory drain location on opposite side), 1-1/2" stainless steel tube fitting 19" AFF. |
| Flow Rate | Peak Rate of Drain flow 18.5 U.S. Gallons per Minute (initial rate with full tank) |
| Water Inlet Size | 3/4" female garden hose fitting on 6' long hose supplied with machine |
| Booster Heater Included | Yes - Electric Booster 7.1 kW; Electric Heating Unit 5.4 kW |
| Number of Wash Cycles | 4 Cycles |
| Wash Cycle Time | Adjustable based on preference - Timed wash cycles for 1, 2, 4 or 6 minutes |
| Racks Per Hour | Up to 36 Racks / hr or 950 Dishes (average 25 per rack) / hr or 1710 Glasses (average 45 per rack) / hr |
| Water Usage | 0.67 Gallons Per Rack (Rinse); 24.12 Gallons per Hour (Max. Consumption) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Door-type dishwasher, High Temp, Ventless, Tall Chamber |
| Style | High-Temp Sanitizing |
| Electrical | 208-240v/60/3 (Field Convertible to 1Ph) |
