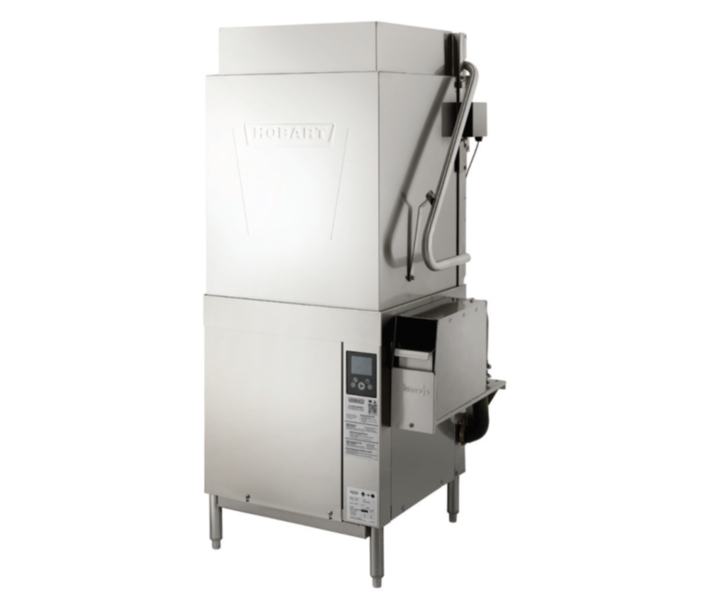

Hobart AM16VLT-ADV-2 High-Temp Door-Type Tall Chamber (27") Automatic Soil Removal Ventless Dishwasher Up to 38 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph)
SKU
27000-101
Free Shipping
Hobart AM16VLT-ADV-2 High-Temp Door-Type Tall Chamber (27") Automatic Soil Removal Ventless Dishwasher Up to 38 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph)
SKU
27000-101
CAD $46,334.72
As low as CAD $1,663.42/mo. with EconoLease. Learn more
Have Questions? Talk to our experts.
Product Highlights
Hobart AM16VLT-ADV-2 High-Temp Door-Type Tall Chamber (27") Automatic Soil Removal Ventless Dishwasher Up to 38 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph) Canada
- .67 gallons per rack pumped final rinse
- 36 racks per hour – hot water sanitizing
- Drain water energy recovery (DWER)
- Automatic soil removal (ASR)
- Ventless energy recovery
- Pillarless opening
- 3-sided insulated hood
- User-friendly smart touchscreen controls
- Single point electrical connection standard, field convertible to dual point connection
- 3 phase standard, field convertible to single phase
- WiFi connectivity
- SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
- Temperature and chemical lock outs (with Hobart equipped chemical pumps)
- Pumped drain
- Door lock
- Timed wash cycles for 1, 2, 4 or 6 minutes
- NSF pot and pan rating for 2-, 4- & 6- minute cycles
- Sense-A-Temp™ 70°F rise electric booster heater
- Self-draining, high efficiency wash pump with stainless steel impeller
- 27" door opening for 18" x 26" sheet pans or 60-quart mixing bowl
- Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
- Spring counterbalanced chamber with reinforced, thermo-plastic rollers
- X- shaped revolving, interchangeable upper and lower anticlogging wash arms
- Revolving, interchangeable upper and lower rinse arms
- Slanted, self-locating, one-piece scrap screen and basket system
- Automatic fill
- Door actuated start
- AutoClean
- Factory installed drain water tempering kit
- Factory startup
- Service diagnostics
- Straight-through or corner installation
- Auto delime
- Sheet pan rack
Product Files
Product Overview
The Hobart AM16 Tall Advansys™ delivers powerful, efficient, and innovative dishwashing performance in a ventless, high-temperature design—ideal for busy commercial kitchens that demand reliability and lower operating costs.
Engineered for exceptional cleaning and maximum efficiency, the AM16 Tall Advansys™ features drain water energy recovery, advanced soil removal, and a tall 27" door opening that accommodates large pots, pans, and sheet pans with ease. Its ventless design eliminates the need for a hood system, reducing installation costs while improving kitchen comfort.
Options & Accessories (Available at extra cost)
- Peg rack
- Combination rack
- ASR left-hand conversion kit
- Chemical pumps
- Splash shield for corner installations
- Flanged and seismic feet
- Water hammer arrestor kit
- Rapid fill kit
- Sink integration kit
- Sink saddle & 3" leg extension
- Sink rail kit
- Fold down table
Notes
- All dimensions taken from floor line may increase 7/8" or decrease 3/8" depending on leg adjustment.
- Net weight of machine including booster: 410 lbs.
Domestic shipping weight including booster: 430 lb - Size of racks – 19-3⁄4" x 19-3⁄4".
- For optimal performance, Hobart recommends maintaining a dishroom temperature of 65°F (18°C) or higher, as lower temperatures may hinder the machine’s capacity to operate effectively (with lower performance as ambient temperature decreases).
Plumbing Notes
- Water hammer arrestor (meeting ASSE-1010 standard or equivalent) to be supplied (by others) in common water supply line at service connection.
- Recommended water hardness to be 3 grains or less for best results.
- This is a pumped rinse machine. Pressure regulating valve is not necessary on hot or cold lines.
UPC: 62828801270001003
Specifications
Hobart AM16VLT-ADV-2 High-Temp Door-Type Tall Chamber (27") Automatic Soil Removal Ventless Dishwasher Up to 38 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph) Canada
| Manufacturing origin | United States |
|---|---|
| MFR # | AM16VLT-ADV-2 |
| Brand | Hobart |
| Net Weight | appx 360 lb |
| Net Depth | 37.4" |
| Net Width | 30" |
| Net Height | 59" (78 1/2" at max open door height) |
| Capacity | 10.5 U.S. Gallons Wash Tank Capacity |
| NEMA | Barewire - Needs a certified eletrician to wire on field, field convertible to Single phase |
| Amps | 53.5 A (Electric Heat Requires 26.9 A, and Booster & Controls requres 26.6 A when field converted to Dual Point 3 Phase) |
| Horsepower | 0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 (ASR Pump); 0.21 HP (Drain Pump); 0.05 HP (Blower) |
| Hertz | 60 |
| Voltage | 208-240V |
| Phase | 3 (Field convertible to 1) |
| Door Style | Solid Door |
| Door Type | Vertical lift hood |
| Drain Size | 1-1/2" stainless steel tube fitting 19" AFF |
| Flow Rate | Peak Rate of Drain flow 18.5 U.S. Gallons per Minute (initial rate with full tank) |
| Water Inlet Size | 3/4" female garden hose fitting on 6' long hose supplied with machine |
| Booster Heater Included | Yes - Electric Booster 7.1 kW; Electric Heating Unit 5.4 kW |
| Number of Wash Cycles | 4 Cycles |
| Wash Cycle Time | Adjustable based on preference - Timed wash cycles for 1, 2, 4 or 6 minutes |
| Racks Per Hour | Up to 40 Racks / hr or 1000 Dishes (average 25 per rack) / hr or 1800 Glasses (average 45 per rack) / hr |
| Water Usage | 0.67 Gallons Per Rack (Rinse); 26.8 Gallons per Hour (Max. Consumption) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Door-type dishwasher, High Temp, Ventless, Tall Chamber, ASR |
| Style | High-Temp Sanitizing |
| Electrical | 208-240V / 60 / 3 (Field Convertible to 1Ph) |
