The Hobart AM16VL-BAS Base Electric Ventless Dishwasher combines high-performance warewashing with energy efficiency and flexible installation. Its innovative ventless heat-recovery system eliminates the need for a traditional exhaust hood by capturing and condensing steam, using that recovered heat to prewarm rinse water. This reduces energy costs and simplifies installation—ideal for kitchens where ventilation infrastructure is limited or costly.
Capable of cleaning up to 45 racks per hour while using just 0.67 gallons (2.5 L) of water per rack, the AM16VL-BAS delivers powerful, efficient results. Its rugged stainless-steel construction ensures long-lasting durability, while the ergonomic base height allows easy loading of sheet pans, bowls, and dishware. Equipped with a smart touchscreen control panel and built-in WiFi, the unit enables real-time monitoring of performance, energy use, and chemical consumption through Hobart’s SmartConnect app.
This ventless dishwasher is an ideal solution for kitchens without the infrastructure, space, or ventilation hood required for traditional systems. It’s also a smart choice for operations that prioritize energy efficiency, cost savings, and installation flexibility in their warewashing setup.
Options & Accessories (Available at extra cost)
Peg, combination and wine rack
ASR left-hand conversion kit
Chemical pumps
Splash shield for corner installations
Flanged and seismic feet
Water hammer arrestor kit
Rapid fill kit
Prison package
Marine package
Notes
All dimensions taken from floor line may increase 7/8" or decrease 3/8" depending on leg adjustment.
Vent hood (if required) to provide a minimum 450 CFM exhaust (ref installation instructions).
Net weight of machine including booster: 410 lbs.
Domestic shipping weight including booster: 430 lbs.
Size of racks – 19 3⁄4" x 19 3⁄4"
Plumbing Notes
Water hammer arrestor (meeting ASSE-1010 standard or equivalent) to be supplied (by others) in common water supply line at service connection.
Recommended water hardness to be 3 grains or less for best results.
This is a pumped rinse machine. Pressure regulating valve is not necessary on hot or cold lines
UPC: 62828801270000938

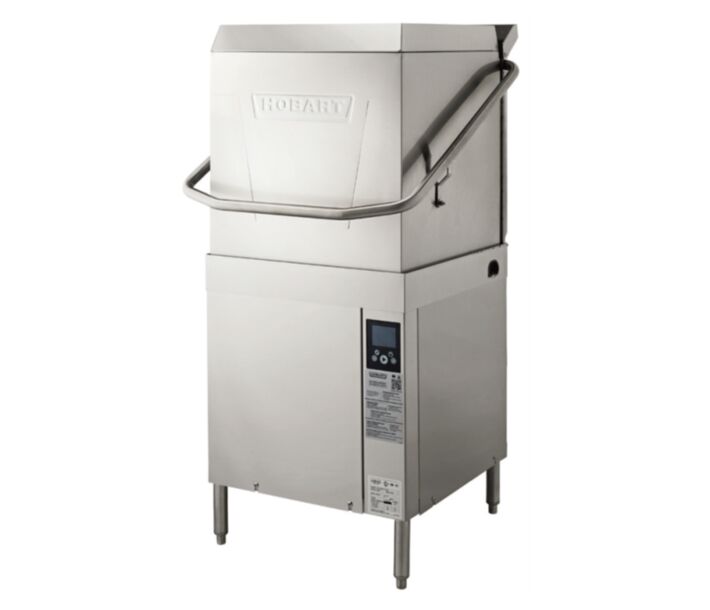

Specifications Hobart AM16VL-BAS-2 High-Temp Door-Type Ventless Dishwasher Up to 45 Racks per Hour 208-240V/60/3 (Field Convertible to 1Ph) Canada
More Information
Manufacturing origin
United States
MFR #
AM16VL-BAS-2
Brand
Hobart
Net Weight
appx 310 lbs
Total Depth
37.4"
Total Width
30"
Total Height
59" (78 1/2" at max open door height)
Capacity
10.5 U.S. Gallons Wash Tank Capacity
NEMA
Barewire - Needs a certified eletrician to wire on field
Amps
53.5 A (Electric Heat Requires 26.9 A, and Booster & Controls requres 26.6 A when field converted to Dual Point 3 Phase)
Horsepower
0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 HP (Drain Pump); 0.05 HP (Blower)
Hertz
60
Voltage
208-240V
Phase
3 (Field convertible to 1)
Door Style
Solid Door
Door Type
Vertical lift hood
Drain Size
5/8" (16 mm) barb fitting with 6' (1829 mm) long hose supplied with machine
Flow Rate
Peak Rate of Drain flow 18.5 U.S. Gallons per Minute (initial rate with full tank)
Water Inlet Size
3/4" (19 mm) female garden hose fitting on 6' (1829 mm) long hose supplied with machine
Booster Heater Included
Yes - Electric Booster 7.1 kW; Electric Heating Unit 5.4 kW
Number of Wash Cycles
4 Cycles
Wash Cycle Time
Adjustable based on preference - Timed wash cycles for 1, 2, 4 or 6 minutes
Racks Per Hour
Up to 45 Racks / hr or Up to 1125 Dishes (average 25 per rack) / hr or Up to 2025 Glasses (average 45 per rack) / hr
Water Usage
0.67 Gallons Per Rack (Rinse); 40.2 Gallons per Hour (Max. Consumption)
Warranty
One year parts and labor warranty provided by Hobart
Product Type
Door-type dishwasher, High Temp, Ventless
Style
High-Temp Sanitizing
Electrical
208-240V / 60 / 3 (Field Convertible to 1Ph)
