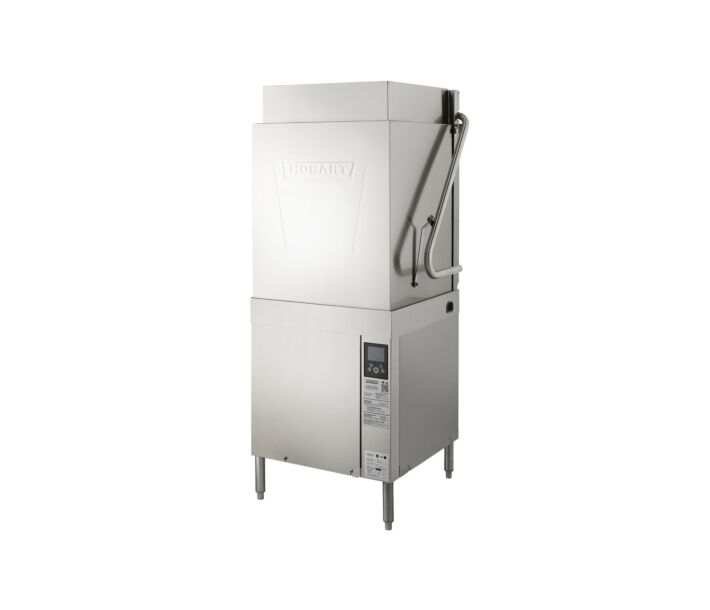

Hobart AM16T-BAS-4 High-Temp Door-Type Dishwasher Tall Chamber (27") Up to 60 Racks Per Hour 480V/60/3
SKU
27000-092
New
Free Shipping
Hobart AM16T-BAS-4 High-Temp Door-Type Dishwasher Tall Chamber (27") Up to 60 Racks Per Hour 480V/60/3
SKU
27000-092
CAD $38,334.64
As low as CAD $1,376.21/mo. with EconoLease. Learn more
Have Questions? Talk to our experts.
Product Highlights
Hobart AM16T-BAS-4 High-Temp Door-Type Dishwasher Tall Chamber (27") Up to 60 Racks Per Hour 480V/60/3 Canada
- 0.67 gallons per rack pumped final rinse
- 40 racks per hour – hot water sanitizing
- NSF Certified for cleaning pots and pans, and dishes and glasses
- Smart Touchscreen provides simple & intuitive operation
- Timed wash cycles for 1, 2, 4 or 6 minutes
- 27″ door opening for 18″ x 26″ sheet pans or 60-quart mixing bowl
- Stainless steel construction for long life
- Delime cycle and service diagnostics
- Sheet pan rack standard
- ENERGY STAR® rated
- The AM16 has a configuration available to suit your unique needs
Product Files
Product Overview
The AM16T-BAS Tall Base Electric Dishwasher delivers high throughput, reliability, and intelligent digital monitoring for demanding foodservice operations. Its advanced connectivity and diagnostics provide real-time insight into usage, energy, and chemical consumption, helping kitchen managers reduce downtime and optimize performance. It is perfectly suited for facilities that handle mixed loads, including sheet pans, large mixing bowls, and standard dishware, providing flexibility and consistent results across a variety of items. Not only that, it serves operations seeking advanced digital monitoring capabilities to support preventive maintenance, optimize performance, and maintain cost control in demanding commercial environments.
UPC: 62828801270000921
Specifications
Hobart AM16T-BAS-4 High-Temp Door-Type Dishwasher Tall Chamber (27") Up to 60 Racks Per Hour 480V/60/3 Canada
| Manufacturing origin | United States |
|---|---|
| MFR # | AM16T-BAS-4 |
| Brand | Hobart |
| Net Weight | appx. 340 lbs |
| Total Depth | 25 3/16" |
| Total Width | 34 1/2" |
| Total Height | 67 5/8" (90 5/8" at max open door height) |
| Capacity | 10.5 U.S. Gallons Wash Tank Capacity |
| NEMA | Barewire - Needs a certified eletrician to wire on field |
| Amps | 23.5 A (Electric Heat Requires 10.5 A, and Booster & Controls requres 12.9 A when field converted to Dual Point 3 Phase) |
| Horsepower | 0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 HP (Drain Pump) |
| Hertz | 60 |
| Voltage | 480V |
| Phase | 3 |
| Door Style | Solid Door |
| Door Type | Vertical lift hood |
| Drain Size | 5/8" (16 mm) barb Fitting with 6' (1829 mm) hose supplied with machine |
| Flow Rate | Peak Rate of Drain flow 18.5 U.S. Gallons per Minute (initial rate with full tank) |
| Water Inlet Size | 3/4" (19 mm) female garden hose fitting on 6' (1829 mm) long hose supplied with machine |
| Booster Heater Included | Yes - Electric Booster 7.1 kW; Electric Heating Unit 5.4 kW |
| Number of Wash Cycles | 4 Cycles |
| Wash Cycle Time | Adjustable based on preference - Timed wash cycles for 1, 2, 4 or 6 minutes |
| Racks Per Hour | Up to 60 racks / hr or 1500 Dishes / hr (average 25 per rack) or 2700 Glasses / hr (average 45 per rack) |
| Water Usage | 0.67 Gallons Per Rack (Rinse); 40.2 Gallons per Hour (Max. Consumption) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Door-type dishwasher, High Temp |
| Style | High-Temp Sanitizing |
| Electrical | 480V / 60 / 3 |
