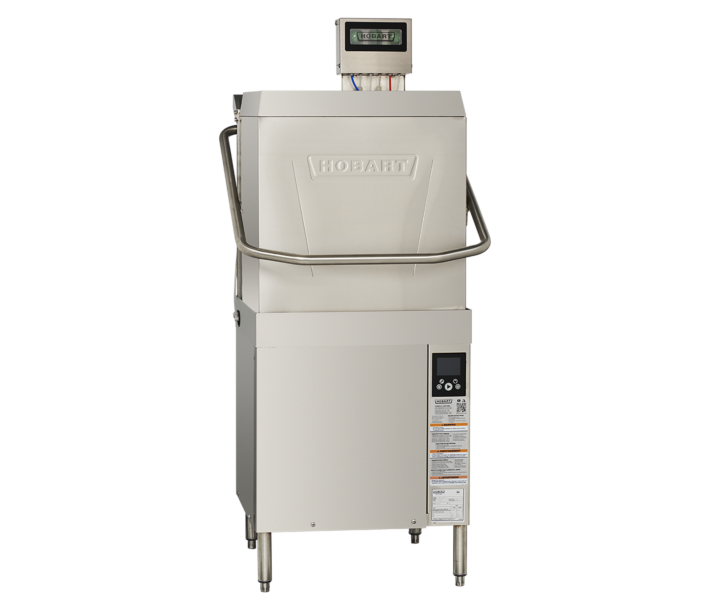

Hobart AM16SCB-16 Chemical Sanitizing Door-Type Dishwasher Up to 72 Racks per Hour 208/240/60/1

SKU
27000-097
New
Free Shipping

Hobart AM16SCB-16 Chemical Sanitizing Door-Type Dishwasher Up to 72 Racks per Hour 208/240/60/1

SKU
27000-097
CAD $25,276.91

As low as CAD $907.44/mo. with EconoLease. Learn more

Have Questions? Talk to our experts.
chat-icon
Mon-Fri 8:30AM -
7:00PM EST

Product Highlights
Hobart AM16SCB-16 Chemical Sanitizing Door-Type Dishwasher Up to 72 Racks per Hour 208/240/60/1 Canada

  • .67 gallons per rack pumped final rinse
  • 72 racks per hour – chemical sanitizing
  • Chemical pumps
  • Temperature and chemical lock outs
  • Two stage filtration
  • Pillarless opening
  • 5-sided insulated hood
  • User-friendly smart touchscreen controls
  • Single point electrical connection
  • WiFi connectivity
  • SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
  • Pumped drain
  • Timed wash cycles for 1, 2, 4 or 6 minutes
  • NSF pot and pan rating for 2-, 4- & 6- minute cycles
  • Sense-A-Temp™ 30°F rise electric booster heater
  • Self-draining, high efficiency wash pump with stainless steel impeller
  • 17" door opening accommodates one 18" x 26" sheet pan or 30" sandwich cutting board
  • Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
  • Spring counterbalanced chamber with reinforced, thermo-plastic rollers
  • X- shaped revolving, interchangeable upper and lower anticlogging wash arms
  • Revolving, interchangeable upper and lower rinse arms
  • Slanted, self-locating, one-piece scrap screen and basket system
  • Automatic fill
  • Door actuated start
  • AutoClean
  • Service diagnostics
  • Straight-through or corner installation
  • Delime cycle with notification
  • Remote monitoring compatible
icon-0 icon-1 icon-2

Product Files


Spec Sheet ( 924.92 kB)

Instruction Manual ( 3.83 MB)

Brochure ( 10.40 MB)

Product Overview

The Hobart AM16SCB brings exceptional wash results to operations where a high-temperature system isn’t practical. Using advanced low-temperature, chemical sanitizing technology, it delivers the same cleaning and sanitizing performance as traditional high-temp dishwashers — but with lower energy demand and greater flexibility.

This model is specifically designed for kitchens that operate with restricted electrical capacity or that need to wash both dishes and delicate glassware in the same cycle. The low-temp process eliminates the need for an internal booster heater while protecting sensitive materials from heat-related wear, clouding, or cracking — an ideal solution for restaurants, bars, and catering venues that value both performance and care.



barcodeUPC: 62828801270000976

Specifications
Hobart AM16SCB-16 Chemical Sanitizing Door-Type Dishwasher Up to 72 Racks per Hour 208/240/60/1 Canada

More Information
Manufacturing originUnited States
MFR #AM16SCB-16
BrandHobart
Net Weightappx. 315 lbs
Total Depth37.4"
Total Width30"
Total Height68 5/8" (78 1/2" max door height)
Capacity10.5 U.S. Gallons Wash Tank Capacity
NEMABarewire - Needs a certified eletrician to wire on field
Amps25.6A (208V/60/1) ; 27.7A (240V/60/1)
Horsepower0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 HP (Drain Pump)
Hertz60
Voltage208V / 240V
Phase1
Door StyleSolid Door
Door TypeVertical lift hood
Drain Size5/8" barb fitting with 6' long hose supplied with machine
Flow RatePeak Rate of Drain flow 14.5 U.S. Gallons per Minute (initial rate with full tank)
Water Inlet Size3/4" female garden hose fitting on 8' long hose supplied with machine
Booster Heater IncludedYes - Electric Booster 4.3 kW; Electric Heating Unit 4.3 kW
Number of Wash Cycles4 Cycles
Wash Cycle TimeAdjustable based on preference - Timed wash cycles for 1, 2, 4 or 6 minutes
Racks Per HourUp to 72 Racks / hr or Up to 1800 Dishes (average 25 per rack) / hr or Up to 3240 Glasses (average 45 per rack) / hr
Water Usage0.67 Gallons Per Rack (Rinse); 47.9 Gallons per Hour (Max. Consumption)
WarrantyOne year parts and labor warranty provided by Hobart
Product TypeDoor-type dishwasher, Low Temp
StyleLow-Temp / Chemical Sanitizing
Electrical208V / 240V / 60 / 1
