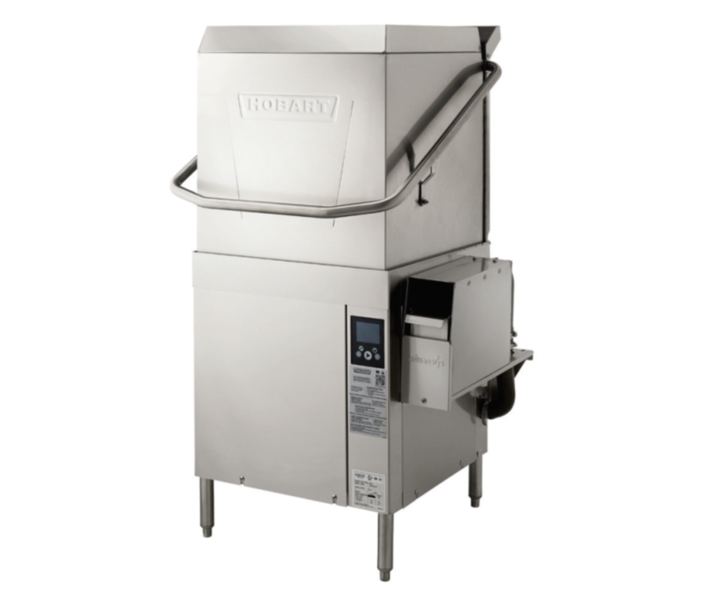

Hobart AM16-ASR-2 High-Temp Door-Type Automatic Soil Removal Dishwasher Up to 52 Racks per Hour 240V/60/3 (Field convertible to 1)
Hobart AM16-ASR-2 High-Temp Door-Type Automatic Soil Removal Dishwasher Up to 52 Racks per Hour 240V/60/3 (Field convertible to 1)
As low as CAD $1,140.78/mo. with EconoLease. Learn more
Product Files
Product Overview
The Hobart AM16 ASR is a high-performance door-style commercial dishwasher engineered to deliver exceptional cleaning results while streamlining your dishroom operations. Featuring Automatic Soil Removal (ASR) technology, intuitive touchscreen controls, Wi-Fi connectivity, and robust construction, this model is designed for demanding food-service environments seeking long-term reliability and efficiency.
If your facility demands consistent sanitation, efficient throughput, reduced labor and simplified maintenance, the AM16 ASR is engineered to deliver. Its automation of daily cleaning tasks, intuitive control system, and durable build ensure that you can rely on this machine day after day. Whether you're processing dishware, glassware, or sheet pans, this model provides flexibility and performance that align with modern commercial-dishroom expectations.
Options & Accessories (Available at extra cost)
- Peg, combination and wine rack
- ASR left hand conversion kit
- Chemical pumps
- Splash shield for corner installations
- Flanged and seismic feet
- Water hammer arrestor kit
- Door lock kit
- Rapid fill kit
- Prison package
- Marine package
Notes
- All dimensions taken from floor line may increase 7/8" or decrease 3/8" depending on leg adjustment.
- Net weight of machine including booster: 325 lbs.
- Domestic shipping weight including booster: 345 lbs.
- Size of racks – 19-3⁄4" x 19-3⁄4".
- Backflow prevention provided by NSF-approved air gap device.
- For optimal performance, Hobart recommends maintaining a dishroom temperature of 65°F (18°C) or higher, as lower temperatures may hinder the machine’s capacity to operate effectively (with lower performance as ambient temperature decreases).
Plumbing Notes
- Water hammer arrestor (meeting ASSE-1010 standard or equivalent) to be supplied (by others) in common water supply line at service connection.
- Recommended water hardness to be 3 grains or less for best results.
- This is a pumped rinse machine. Pressure regulating valve is not necessary on hot or cold lines.
UPC: 62828801270000983
Specifications
Hobart AM16-ASR-2 High-Temp Door-Type Automatic Soil Removal Dishwasher Up to 52 Racks per Hour 240V/60/3 (Field convertible to 1) Canada
| Manufacturing origin | United States |
|---|---|
| MFR # | AM16-ASR-2 |
| Brand | Hobart |
| Net Weight | appx 330 lbs |
| Total Depth | 37.4" |
| Total Width | 30" |
| Total Height | 59" (78 1/2" at max open door height) |
| Capacity | 10.5 U.S. Gallons Wash Tank Capacity |
| NEMA | Barewire - Needs a certified eletrician to wire on field |
| Amps | 53.5 A (Electric Heat Requires 26.9 A, and Booster & Controls requres 26.6 A when field converted to Dual Point 3 Phase) |
| Horsepower | 0.18 HP (Rinse Pump) ; 2 HP (Wash Pump); 0.21 HP (Drain Pump); 0.18 HP (ASR Pump) |
| Hertz | 60 |
| Voltage | 240V |
| Phase | 3 (Field convertible to 1) |
| Door Style | Solid Door |
| Door Type | Vertical lift hood |
| Drain Size | 1-1/2" stainless steel tube fitting 19" AFF |
| Flow Rate | Peak Rate of Drain flow 18.5 U.S. Gallons per Minute (initial rate with full tank) |
| Water Inlet Size | 3/4" female garden hose fitting on 6' long hose supplied with machine |
| Booster Heater Included | Yes - Electric Booster 7.1 kW; Electric Heating Unit 5.4 kW |
| Number of Wash Cycles | 4 Cycles |
| Wash Cycle Time | 4 |
| Racks Per Hour | Up to 52 Racks / hr or Up to 1300 Dishes (average 25 per rack) / hr or Up to 2340 Glasses (average 45 per rack) / hr |
| Water Usage | 0.67 Gallons Per Rack (Rinse); 34.84 Gallons per Hour (Max. Consumption) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Door-type dishwasher, High Temp, Automatic Soil Remove |
| Style | High-Temp Sanitizing |
| Electrical | 240V / 60 / 3 (Field convertible to 1) |
