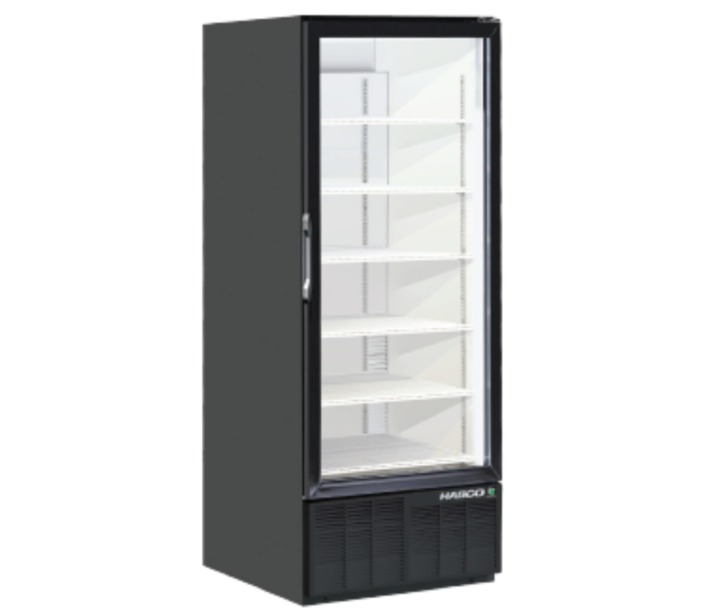

HABCO Impulse Single Door Model ESM28HCTD

Premium High Capacity, Single Door Cold Space Merchandiser® designed for volume merchandising with premium impact and appeal. Wide-format provides maximum LED illuminated merchandising. This model can be built on the top, bottom, rear, and both sides.

Refrigeration:

• Self-contained Cassette® forced-air refrigeration employs R290 hydrocarbon Natural Refrigerant within a sealed capillary tube system.
• Cassette® refrigeration is bottom-mounted and removable from the front for ease of maintenance. Refrigeration may be exchanged or upgraded without a mechanic. Designed to hold 33°F to 38°F (0.5°C to 3.3°C).
• Priority, directed airflow provides optimum cooling and energy efficiency within the cabinet and exclusively at front of the unit for optimized heat exchange ventilation.
• Finless, Free&Clear™ Condenser Coil maximizes airflow over the compressor, reduces energy consumption, and is non-clogging.
• Automatic, stainless steel condensate control system.
• Quality, self-lubricating, and sealed motors with streamlined airflow provide quieter yet robust refrigeration.

Cabinet:

• Exterior – durable textured black.
• Interior – NSF-approved white aluminum liner with stainless steel floor.
• Ergonomic raised interior floor.
• Space-Saving Design – air ventilation exclusively from the front of the unit.
• Insulation – the cabinet is foamed-in-place with eco-conscious, polyurethane insulation.
• Heavy-duty thread-in leveler legs.

Doors:

• Self-Closing Swing Door features hold-open position and spring-back protection, reversible on-location.
• Magnetic gaskets are single-piece bead-mount construction easily removable for cleaning.
• Heat Reflecting full door HABCO Insulated Safety Glass with black extruded frame.
• Integrated, injection-molded pocket handle(s).

Lighting:

• Energy Efficient Full LED Array Lighting System for crisp Illuminated display of product.

Storage:

• Six (6) white coated shelves 26 1/4"W x 22" D (667mm x 559mm), are NSF approved.
• Heavy-duty aluminum shelving pilasters will not peel or chip adjustment of 1/2” (13mm) increments.
• NSF-7 is compliant with the storage or display of pre-packaged aseptic products.

Electrical:

• Factory power cord installed for connection to a sole-use (dedicated) 115V/60Hz/1-Phase, 15 Amp circuit.
