HABCO Impulse Single Door Model ESM18

SKU
16000-117
CAD $2,635.00
  • Uses R134a refrigerant
  • Finless Free&Clear Condenser Coil maximizes airflow over the compressor
  • Designed to hold 33°F to 38°F/0.5°C to 3.3°C
  • Automatic and stainless steel condensate control system

*ESM18: Designed to optimize the merchandising experience to the highest standards of quality and performance*

Certifications
icon-0 icon-1 icon-2

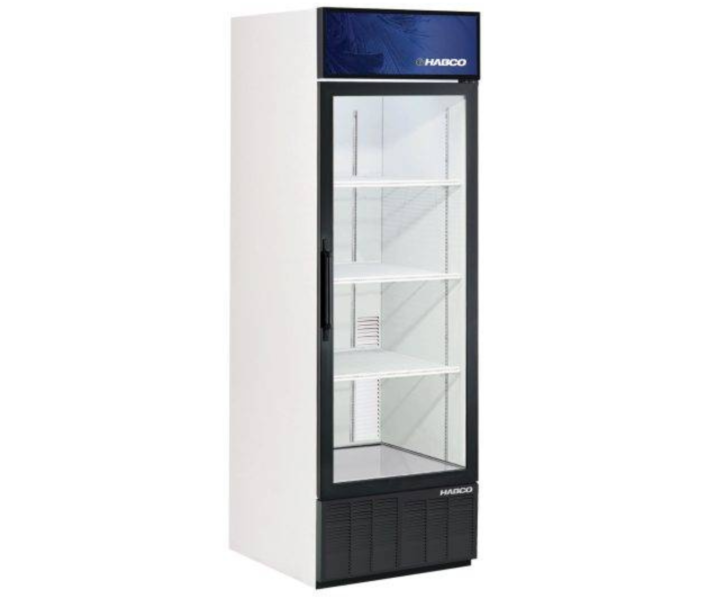

HABCO Impulse Single Door Model ESM18

Premium Slimline Single Door Cold Space Merchandiser® with maximum storage in a compact two-foot square footprint. Features Sparkling LED illuminated merchandising. Ideal for tight spaces such as kiosks in food courts and end-aisle placements, where cold product merchandising is essential. This model can be built on the top, bottom, rear, and both sides.

Refrigeration:

  • Self-contained Cassette® forced-air refrigeration employs R-134a refrigerant within a sealed capillary tube system.
  • Cassette® refrigeration is bottom-mounted and removable from the front for ease of maintenance. Refrigeration may be exchanged or upgraded without a mechanic. Designed to hold 33°F to 38°F (0.5°C to 3.3°C).
  • Priority, directed airflow provides optimum cooling and energy efficiency within the cabinet and exclusively at front of the unit for optimized heat exchange ventilation.
  • Finless, Free&Clear™ Condenser Coil maximizes airflow over the compressor, reduces energy consumption, and is non-clogging.
  • Automatic, stainless steel condensate control system.
  • Quality, self-lubricating, and sealed motors with streamlined airflow provide quieter yet robust refrigeration.

Cabinet:

  • Exterior – durable textured black.
  • Interior – NSF-approved white aluminum liner with stainless steel coved corner floor.
  • Ergonomic raised interior floor.
  • Space-Saving Design – air ventilation exclusively from the front of the unit.
  • Insulation – cabinet is foamed-in-place with eco-conscious, polyurethane insulation.
  • Heavy-duty thread-in leveler legs.

Doors:

  • Self-Closing Swing Door features hold-open position and spring-back protection, reversible on-location.
  • Magnetic gaskets are single-piece bead-mount construction easily removable for cleaning.
  • Heat Reflecting HABCO Insulated Safety Glass with black extruded frame.
  • Integrated, injection-molded pocket handle(s).

Lighting:

  • Energy Efficient LED Lighting System for crisp Illuminated Signage and Interior Display, on Switch.

Storage:

  • Five (5) white coated shelves 19 1/2"W x 18" D (496mm x 458mm), are NSF approved.
  • Heavy-duty aluminum shelving pilasters will not peel or chip adjustment of 1/2" (13mm) increments.
  • NSF-7 is compliant with the storage or display of pre-packaged aseptic products.

Electrical:

  • Factory power cord installed for connection to a sole-use (dedicated) 115V/60Hz/1-Phase, 15 Amp circuit.

Specification

More Information
Brands HABCO
MFR # ESM18
Voltage 115V
Hertz 60
Phase 1
Door Style Glass Door
Horsepower 0.25 HP
Number of Shelves 5
Number of Doors 1
Refrigerant R134A
Temperature Range 0.5 degree C to 3.3 degree C / 33 degree F to 38 degree F
NEMA 5-15P
Amps 2.7
Exterior Material Durable Textured Black
Interior Material White Aluminum
Interior Lighting LED
Width in Inches 23.88
Height In Inches 78
Depth In Inches 24

Resources and Download

SPECSHEET ( 656.51 kB)
