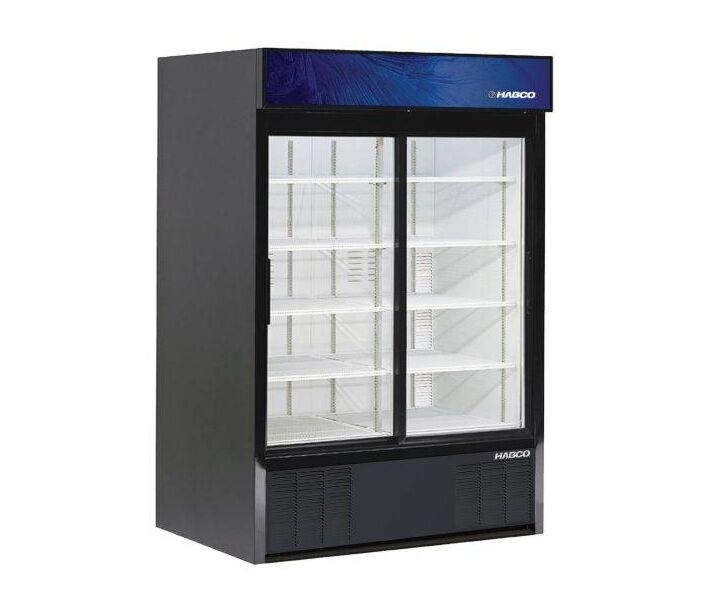

HABCO Double Sliding Model ESM47

HABCO Double Sliding Model ESM47

Premium sliding door Cold Space Merchandiser® provides added capacity with sparkling LED merchandising impact. Ideal for retail floor or anywhere where maximum product facings are vital. Authentically front-breathing, this model can be built-in top, bottom, rear, and both sides.

Refrigeration:
• Self-contained Cassette® forced-air refrigeration employs R-134a refrigerant within a sealed
capillary tube system.
• Cassette® refrigeration is bottom-mounted and removable from the front for ease of
maintenance. Refrigeration may be exchanged or upgraded without a mechanic. Designed to
hold 33°F to 38°F (0.5°C to 3.3°C).
• Priority-directed airflow provides optimum cooling and energy efficiency within the cabinet and
exclusively at front of the unit for optimized heat exchange ventilation.
• Finless, Free&Clear™ Condenser Coil maximizes airflow over the compressor, reduces energy
consumption, and is non-clogging.
• Automatic, stainless steel condensate control system.
• Quality, self-lubricating, and sealed motors with streamlined air-flow provide quieter yet robust
refrigeration.

Cabinet:
• Exterior – durable textured black.
• Interior – NSF-approved white aluminum liner with stainless steel floor.
• Ergonomic raised interior floor.
• Space Saving Design – air ventilation exclusively from the front of the unit.
• Insulation – the cabinet is foamed-in-place with eco-conscious, polyurethane insulation.
• Heavy-duty thread-in leveler legs.

Doors:
• Easy-Glide, Self-Closing Sliding Doors are suspended on large nylon-tired roller bearings,
with spring assist and magnetic cabinet side seals.
• Magnetic gaskets are single-piece bead-mount construction easily removable for cleaning.
• Heat Reflecting HABCO Insulated Safety Glass with black extruded frame.
• Durable, injection-molded external door handle(s).

Lighting:
• Energy Efficient LED Lighting System for crisp Illuminated Signage and Interior Display,
on Switch.

Storage:
• Ten (10) white coated shelves 24 1/2"W x 21 1
/2" D (623mm x 547mm), are NSF approved.
• Heavy-duty aluminum shelving pilasters will not peel or chip adjustment of 1/2" (13mm) increments.
• NSF-7 is compliant for storage or display of pre-packaged aseptic products.

Electrical:
• Factory power cord installed for connection to a sole-use (dedicated)
115V/60Hz/1-Phase, 15 Amp circuit.
