Garland GTBG36-AR36 Heavy Duty Gas Radiant Char-Broiler with Adjustable Grates

SKU
34000-070
CAD $4,023.00
  • Stainless steel construction
  • Six 18,000 BTU burners with one cast iron radiant and one valve control each
  • 21-1/2” (546mm) broiling grid depth
  • 2-position adjustable broiler grates

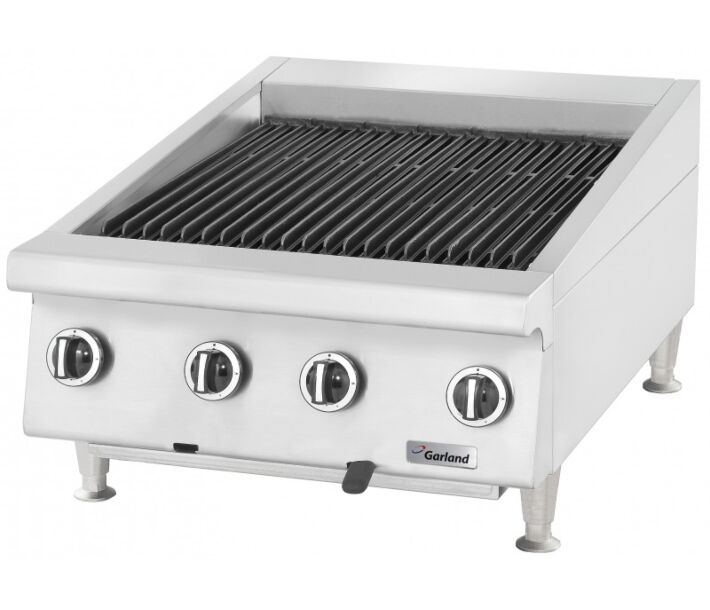

Model GTBG24-AR24 Shown

This product qualifies for Free Shipping

Garland GTBG36-AR36 Heavy Duty Gas Radiant Char-Broiler with Adjustable Grates

Stainless steel front, sides, and back.  4" Stainless steel adjustable legs.  3/4" NPT gas regulator on all 24" to 60" wide models with "T" gas manifold connection for straight-through rear or flush mount gas connections.  SS front rail 4" deep.  SS large capacity crumb tray.  Reversible cast iron broiler racks in 3" wide sections with 1/8" and 3/16" brand marks.  21 1/2" broiling grid depth.  2 position adjustable broiler grates.  One cast-iron radiant over an 18,000 BTU stainless steel tube burner for every 6" of broiler width. One two-position hi/lo valve control for each burner.

Features:

  • SS front, sides, and back
  • 4-inch SS adjustable legs
  • 3/4-inch NPT gas regulator on all 24-inch to 60-inch wide models with "T" gas manifold connection for straight-through rear or flush-mount gas connections
  • SS front rail; 4-inch (102 mm) deep overall with 3 1/2-inch top work surface
  • 2-position adjustable broiler grates or fixed-position non-adjustable grates
  • One cast-iron radiant over an 18,000 BTU stainless steel tube burner for every 6-inch of broiler width
  • One two-position hi/lo valve control for each burner

Specifications:

  • Garland gas radiant broilers are available with adjustable or non-adjustable cooking racks
  • In five (5) nominal imperial widths from 24" to 60"
  • 13" high and 32" deep
  • Reversible cast-iron grates in 3-inch wide sections overall cooking area depth 21 3/16"
  • one (1) 18,000 BTU burner with individual valve control per 6-inch of broiler width
  • Large stainless steel catch tray
  • Stainless steel front, sides, and back

Specification

More Information
Length in Inches 32
Width in Inches 35.43
Height In Inches 13
Brands Garland
MFR # GTBG36-AR36

Resources and Download

SPECSHEET ( 644.39 kB)
