Fast Kitchen Hood SSH-MUA Wall Type Make Up Air Commercial Exhaust Hood

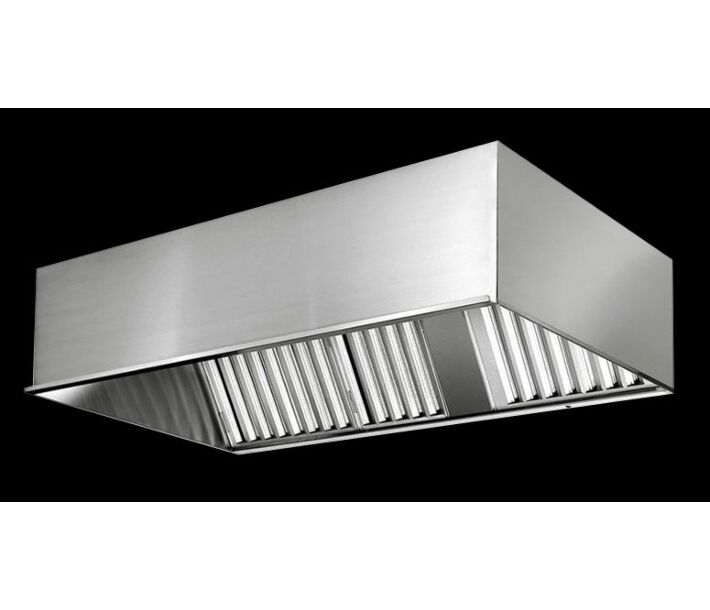

Description: FAST wall-type exhaust hood model SSH-MUA complete with baffle filters.

Construction: Exposed hood surface: type 430 stainless steel (304 optional) with #4 finish (brushed). Non-exposed hood surface: stainless steel with #2B finish. Minimum 18-gauge (1.2 mm) thickness. All visible welded joints are polished to match original finish. To meet NFPA- 96 requirements.

Installation: Suspension (recommended height) The hood should be installed 6’ 6” (1,981 mm) from the floor. Hanging brackets are welded at all four corners. Semi-combustible materials. A clearance of 3” (76 mm) is required when the hood is in contact with semi-combustible materials. As per NFPA-96 standards, a stainless steel spacer will be required.
Electrical: Junction box and pre-wiring for lighting system may be factory installed if required.

Specifications:
• Constructed of sturdy 18-gauge (1.2 mm) stainless steel
• Available in lengths of 3’ 0” to 16’ 0” (914 mm to 4,877 mm)
• Washable baffle filters.
• Untampered air introduced directly into hood
• Easy installation
• Listed NSF, ETL and
• Many options available (see reverse)
• Quick delivery

Electrical: Junction box and pre-wiring for lighting system may be factory installed if required.
