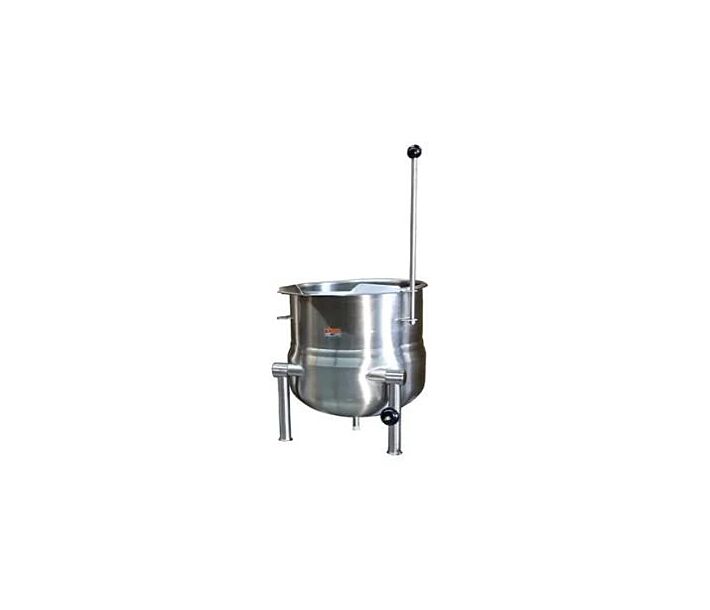

Crown Steam DC-12 Direct Counter Steam Kettles, 2/3 jacket, 12 gallon

SKU
16000-383
CAD $8,743.91
  • Stainless steel construction
  • Reversible tilt handle with bearings to tilt the kettle forward past 90°
  • Featuring double wall kettle interior for superior steaming
This product qualifies for Free Shipping

Steam DC-12 Direct Counter Steam Kettles, 2/3 jacket, 12 gallon

The DC-6, DC-10, DC-12 and DC-20 double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle. The bottom of the kettle is of hemispheric design for superior heat transfer. The tubular stainless steel mounting legs have the tilt bearings, steam supply and condensate return pipes completely concealed within the leg members and the right leg is fitted with a steam control valve. A single support leg with nylon foot supports the kettle in the upright position.

The sealed stainless steel tilt mechanism bearings permits the kettle to tilt forward past 90° for complete emptying. A removable operating handle with heat-proof knob is mounted on the left or right. Construction is comprised of all welded satin finish stainless steel, type 304. Standard features include type 316 stainless steel liner for use with high acid content products. The kettle is NSF Certified, ASME code stamped and National Board registered.

Direct connected, steam, counter top tilting kettle. A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle. The bottom of the kettle shall be of hemispheric design for superior heat transfer. The tubular stainless steel mounting legs shall have the tilt bearings, steam supply and condensate return pipes completely concealed within the leg members and the right leg will be fitted with a steam control valve. A single support leg with nylon foot shall support the kettle in the upright position. The sealed stainless steel tilt mechanism bearings shall permit the kettle to tilt forward past 90° for complete emptying. A removable operating handle with heat-proof knob shall be mounted on the left or right.

STANDARD FEATURES

  • Reversible tilt handle
  • Type 316 stainless steel liner
  • Steam control valve
  • Type 316 stainless steel liner for use with high acid content products
  • Bearings permit the kettle to tilt forward past 90° for complete emptying
  • Removable operating handle with heat-proof knob
  • Double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle
  • All welded satin finish stainless steel, type 304

ACCESSORIES

  • One piece lift off stainless steel cover (C-)
  • Stainless steel perforated basket (SSB-)
  • Pour lip strainer (TKS-)
  • Steam control assembly (STA-3) consisting of line strainer, steam trap and safety valve
  • Contoured measuring strip (CMS-)
  • Pressure reducing valve (PRV)

Specification

More Information
Length in Inches 20
Height In Inches 36
Width in Inches 20
Brands Crown Steam
MFR # DC-12

Resources and Download

SPECSHEET ( 546.74 kB)
PARTS ( 731.38 kB)
