Biro EMG32 Auto Feed Mixer/Grinder 7.5Hp 575/60/3
Biro EMG32 Auto Feed Mixer/Grinder 7.5Hp 575/60/3
As low as CAD $903.93/mo. with EconoLease. Learn more
Price Match Guarantee
Zanduco Restaurant Equipment & Supplies is committed to providing you with the best prices everyday. That is why we are proud to offer a Price Match Guarantee on qualifying products. If you find the same product on another site, we will try our best to match or offer you an even better price.
To inquire about Price Match Guarantee, just send us a message through chat, give us a call at 1-855-926-3826 or email us at sales@zanduco.com. Please be prepared to provide us with the URL of the product page with the lower price.
We do not price match private sales, auctions, stock liquidations, coupon offers, or stores that are not located in the United States or Canada. Additional restrictions may apply.
- 200 lbs / 91 kg hopper
- 7.5 HP drive motor
- Includes pneumatic footswitch & double-deck meat cart (no lugs)
Comes Standard 208V 60Hz Three Phase
Resources and Download

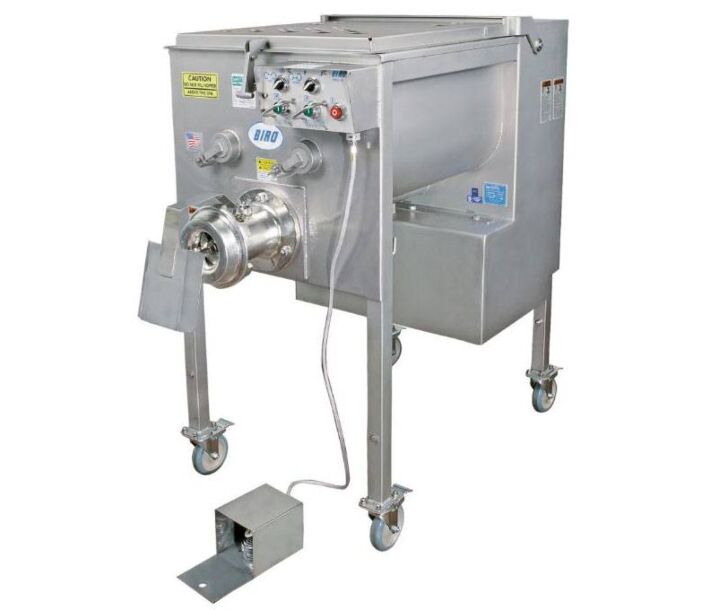

MODEL EMG-32 ERGONOMIC MIXER GRINDER
Increase your meat grinding operations to new heights of productivity, efficiency, and profit with the BIRO EMG-32 Ergonomic Mixer Grinder. The top of the hopper is low so that the average operator no longer has to lift a full meat lug above their shoulders to dump it in the hopper. Additionally, the grinding head is higher so you don’t have to bend over to fill trays prior to packaging. Just as important, you get all of this without sacrificing the quality of your end product. Typical temperature rise of the product is 0° to 3°F (depending on product and ambient temperatures) which help ensure maximum shelf life. The twin mixing paddles feed the auger of the EMG-32 evenly and smoothly giving you a fast, thorough blend without overworking your product. The compact size means it fits nicely in today’s smaller, more efficient meat rooms, so that you can continue to maintain a high level of productivity in minimal space. All of this comes with the superior BIRO design and reliability you’ve come to expect.
SPECIFICATIONS
MODEL
EMG-32 Ergonomic Feed Mixer Grinder
CONSTRUCTION
Heavy duty stainless steel hopper, lid, paddle, frame and auger.
MOTORS
TEFC = Totally Enclosed Fan Cooled
|
MOTOR |
HP |
KW |
TYPE |
VOLTS |
AMPS |
CYCLE |
PH |
CODE |
|
AUGER |
7.5 |
5.5 |
TEFC |
208-230/460 |
24-22/11 |
60 |
3 |
STD |
|
MIXER |
3/4 |
.56 |
TEFC |
208-230/460 |
2.7-2.8/1.2 |
60 |
3 |
STD |
|
AUGER |
7.5 |
5.6 |
TEFC |
575 |
8.8 |
60 |
3 |
EC |
|
MIXER |
3/4 |
.56 |
TEFC |
575 |
1.1 |
60 |
3 |
EC |
|
AUGER |
7.5 |
5.5 |
TEFC |
220/380-415 |
22/12.7-11.6 |
50 |
3 |
STD |
|
MIXER |
3/4 |
.56 |
TEFC |
220/380-415 |
5.9/3.3-3.1 |
50 |
3 |
STD |
STD = Standard EC = Extra Cost NC = No Charge
SWITCH
Watertight magnetic with thermal overload and under voltage protection, 24 volt control circuit.
POWER CORD
11’ No. 10 Ga., 4 wire cord, (common), 220-50-3 & 208-220/440-60-3; includes plug with cord. 380-415-50-3 or 575-60-3 cord supplied less plug.
HOPPER CAPACITY
Up to 150 lbs. (68 kg).
GRINDING CAPACITY
Up to 80 lbs. (36.3 kg)/min., 1st grind 3/8” hole plate. Up to 56 lbs. (25.4 kg)/min., 2nd grind, 1/8” hole plate.
DRIVE SYSTEM
Auger transmission: Single reduction, roller chain. Mixer transmission: Double reduction, roller chain.
SAFETY
Magnetic safety interlock system on hopper lid.
STANDARD FEATURES
SS auger (bowl & ring are plated), no inlet(solid tub) hopper, spurt guard, ring wrench, pneumatic footswitch, 11’ cord and plug (U.S.), reversible paddles, meat cart less lugs, locking swivel casters with Prevenz Antimicrobial additive, bowl nut wrench, operating and safety manual.
OPTIONS (EC)
Size 32 knives and plates, electric footswitch, 35° right and left side hopper inlet with connections for tandem operations, stainless steel bowl and ring (Enterprise or Unger).
CERTIFICATION
U.L., N.S.F., U.L.-C.
WEIGHT
Uncrated: 755 lbs. (342 kg) approximate. Crated: 901 lbs. (409 kg) approximate.
CRATED DIMS
L = 62” (1575 mm), W = 41” (1041 mm), H = 62” (1575 mm) approximate.
Specifications
| Total Length | 37 |
|---|---|
| Total Width | 61 |
| Total Height | 62 |
| Brand | Biro |
| MFR # | EMG-32 575/60/3 |
