Biro AFMG24 Auto Feed Mixer/Grinder 7.5Hp -575v/60/3
Biro AFMG24 Auto Feed Mixer/Grinder 7.5Hp -575v/60/3
As low as CAD $990.42/mo. with EconoLease. Learn more
Price Match Guarantee
Zanduco Restaurant Equipment & Supplies is committed to providing you with the best prices everyday. That is why we are proud to offer a Price Match Guarantee on qualifying products. If you find the same product on another site, we will try our best to match or offer you an even better price.
To inquire about Price Match Guarantee, just send us a message through chat, give us a call at 1-855-926-3826 or email us at sales@zanduco.com. Please be prepared to provide us with the URL of the product page with the lower price.
We do not price match private sales, auctions, stock liquidations, coupon offers, or stores that are not located in the United States or Canada. Additional restrictions may apply.
- 140 lbs / 63.5 kg hopper
- 5 HP drive motor
- High productivity that requires low maintenance
- Optional adjustable legs with casters and optional pneumatic footswitch
Comes Standard 208V 60Hz Three Phase
Resources and Download
MODEL AFMG-24 MIXER GRINDER

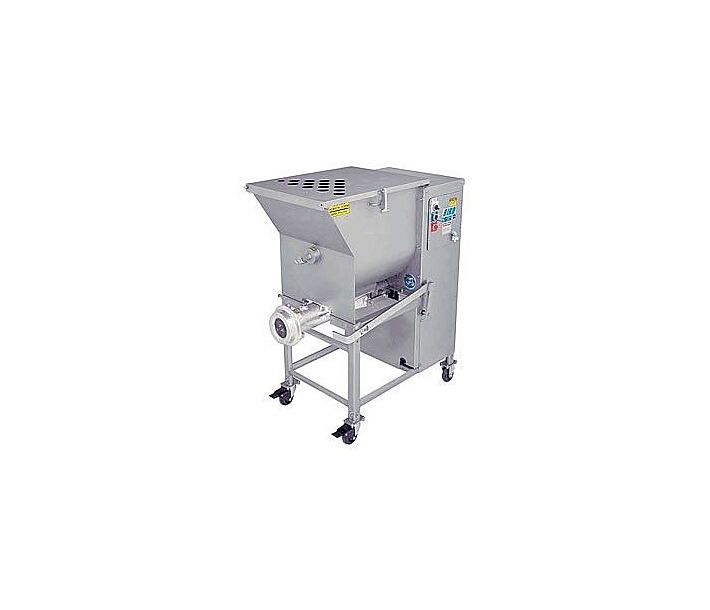

The Biro AFMG-24 Mixer Grinder is an ideal mixer grinder for today’s compact supermarket meatroom. Its 5hp/3.7 kW (7.5 hp/5.6 kW optional) auger motor, 140 lbs. (63.5 kg) hopper, and size 32 head can give you an output of up to 65 lbs. (29 kg) per minute for the productivity you need. For even more productivity, your AFMG-24 can come with an optional meat lug holder (see reverse) and an optional electric or pneumatic footswitch. The heavy duty stainless steel hopper, frame, and legs can stand up to years of daily washdown and still resist corrosion, so your mixer grinder lasts longer, and you get a better return on your investment. Of course, it’s built with the superior engineering you expect from BIRO.
SPECIFICATIONS
MODEL
AFMG-24 Mixer Grinder, size 32 knife & plate.
CONSTRUCTION
Heavy duty stainless steel hopper, lid, paddle, frame and legs. Hot-tin-dipped cast iron bowl, ring, and auger, size 32.
MOTORS
| HP | KW | TYPE | VOLTS | AMPS | CYCLE | PH | CODE |
|---|---|---|---|---|---|---|---|
| 5 | 3.7 | TEFC | 208-230/460 | 14-13.4/6.7 | 60 | 3 | STD |
| 5 | 3.7 | TEFC | 230 | 22 | 60 | 1 | EC |
| 5 | 3.7 | TEFC | 220/380-415 | 14.8/8.6-7.8 | 50 | 3 | EC |
| 7.5 | 5.6 | TEFC | 200 | 25 | 50 | 3 | EC |
| 7.5 | 5.6 | TEFC | 200 | 23 | 60 | 3 | EC |
| 7.5 | 5.6 | TEFC | 208-230/460 | 22-20.2/10.1 | 60 | 3 | EC |
| 7.5 | 5.6 | TEFC | 220/380-440 | 22/12.7/11 | 50 | 3 | EC |
TEFC=Totally Enclosed Fan Cooled STD=Standard EC=Extra Cost
SWITCH
Watertight magnetic with thermal overload and under voltage protection.
POWER CORD
8’ No. 10 gauge, 4 wire cord (common). Plug included on 7.5 hp, 208/230-60-3 only.
HOPPER CAPACITY
Up to 145 lbs. (66 kg).
GRINDING CAPACITY
Up to 68 lbs. (31 kg) per minute depending on product temperature, texture, feed speed, and sharpness of knife and plate.
DRIVE SYSTEM
Tandem gear reducers with mechanical clutch for engaging/disengaging auger.
SAFETY
Magnetic safety interlock system on hopper lid.
STANDARD FEATURES
Stainless steel 2nd grind paddle with hook, no inlet (solid tub) hopper, spurt guard, ring wrench, receptacle for pneumatic footswitch, operating and safety manual.
OPTIONS (EC)
Pneumatic or electric footswitch, size 32 plate and knife, stainless steel bowl, ring, and auger (Enterprise or Unger version), adjustable legs and stainless steel casters, 7.5 hp motor, meat lug holder rods, 90° right or left side hopper inlet with connections for tandem operations.
KNIFE / PLATE
Required, extra cost, various plate hole sizes available to fit your specific application (see above). Call agency or factory.
OPTIONAL (EC) SIZE 32 KNIFE AND PLATE
Plate hole sizes available, other hole sizes not listed available upon request.
| MC32-17 | Knife, 4 Blade |
| MC32-18-093 | Plate, 3/32” Holes (2.5mm) |
| MC32-18-125 | Plate, 1/8” Holes (3.5mm) |
| MC32-18-156 | Plate, 5/32” Holes (4.0mm) |
| MC32-18-187 | Plate, 3/16” Holes (5.0mm) |
| MC32-18-375 | Plate 3/8” Holes (9.0mm) |
Recommend 3/8” first grind, 1/8” second grind.
CERTIFICATION
N.S.F., U.S.D.A (common) 7.5 hp, 3 phase: U.L., C.S.A.; 5 hp, 3 phase: C.S.A.
WEIGHT (7.5 HP VERSION)
Uncrated: 560 lbs. (254 kg) approximate. Crated: 651 lbs. (295 kg) approximate. Wood Crate: 778 lbs. (353 kg) approximate.
DIMENSIONS CRATED
L = 47” (1194 mm) approximate. W = 36” (914 mm) approximate. H = 58” (1473 mm) approximate.
UPC: 690207301781
Specifications
| Total Length | 35 |
|---|---|
| Total Width | 47 |
| Total Height | 55 |
| Brand | Biro |
| MFR # | AFMG24-575/60/3 |
