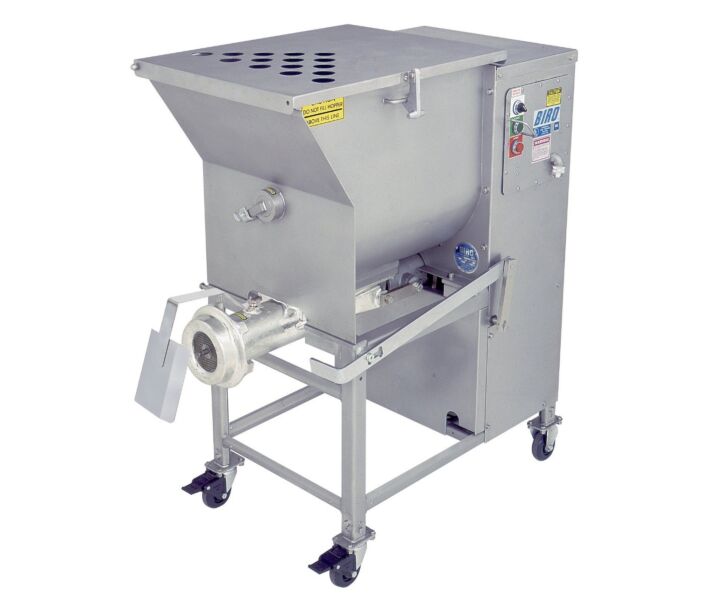

MIXER GRINDER, AFMG-24

The Biro AFMG-24 Mixer Grinder is an ideal mixer grinder for today’s compact supermarket meat room. Its 5hp/3.7 kW (7.5 hp/5.6 kW optional) auger motor, 140 lbs. (63.5 kg) hopper, and size 32 head can give you an output of up to 68 lbs. (31 kg) per minute for the productivity you need. For even more productivity, your AFMG-24 can come with an optional meat lug holder (see reverse) and an optional electric or pneumatic footswitch. The heavy-duty stainless steel hopper, frame, and legs can stand up to years of daily washdown and still resist corrosion, so your mixer grinder lasts longer, and you get a better return on your investment. Of course, it’s built with the superior engineering you expect from BIRO.

SPECIFICATIONS

• The AFMG-24 mixer grinder is equipped with a size 32 knife & plate.
• Construction: Heavy-duty stainless steel hopper, lid, paddle, frame, and legs. Hot-tin-dipped cast iron bowl, ring, and auger, size 32.
• Switch: Watertight magnetic with thermal overload and under-voltage protection.
• Power Cord: 8’  No. 10 gauge, 4 wire cord (common). Plug included on 7.5 hp, 208/230-60-3 only.
• Hopper Capacity: Up to 145 lbs. (66 kg).
• Grinding Capacity: Up to 68 lbs. (31 kg) per minute depending on product temperature, texture, feed speed, and sharpness of knife and plate.
• Drive System: Tandem gear reducers with a mechanical clutch for engaging/disengaging auger.
• Safety: Magnetic safety interlock system on hopper lid.
• Standard Features: Stainless steel 2nd grind paddle with hook, no inlet (solid tub) hopper, spurt guard, ring wrench, receptacle for pneumatic footswitch, operating and safety manual.
• Options (EC): Pneumatic or electric footswitch, size 32 plate and knife, stainless steel bowl, ring, and auger (Enterprise or Unger version), adjustable legs and stainless steel casters, 7.5 hp motor, meat lug holder rods, 90° right or left side hopper inlet with connections for tandem operations.
• Knife / Plate: Required, extra cost, various plate hole sizes available to fit your specific application (see above). Call agency or factory.
• Optional (EC) size 32 knife and plate
