BIRO HHP (HEAVY HORSE POWER) MEAT GRINDERS

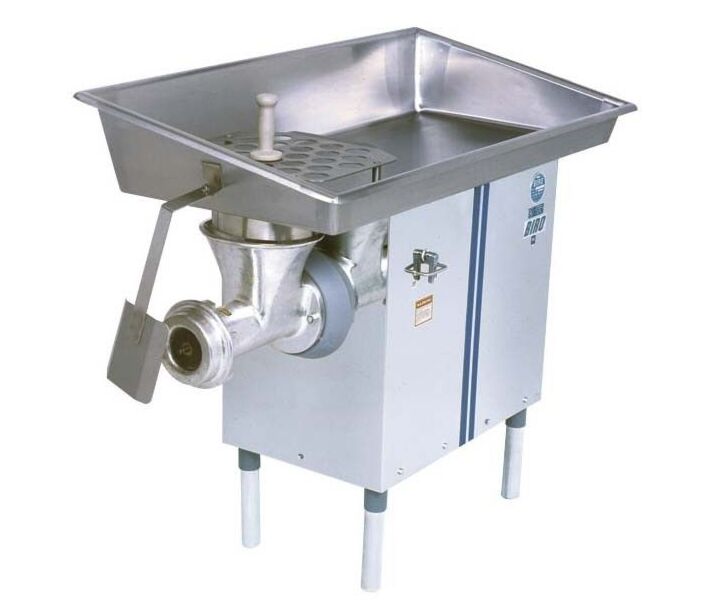

The Biro 548SS is a HHP (Heavy Horse Power) Meat Grinder with manual feed. The bowl size is a #48 and comes with a 5.0Hp motor. All of the HHP series grinders feature single – reduction chain drive transmissions for maximum efficiency and all the grinders use tapered roller bearings for low maintenance and long life. This HHP grinder has output capacities of approximately 55 lbs / minute.

HHP (HEAVY HORSE POWER) MEAT GRINDERS

The Biro HHP (Heavy Horse Power) Meat Grinders are a series of manual feed grinders with a range of bowl sizes and motor sizes that can be tailored to meet your grinding needs. With bowl sizes of 48, 52, or 56 and motor sizes of 5, 7.5, 10, or 15 hp (3.7, 5.6, 7.5, or 11.2 kw), we can provide a grinder that is just right for your application. All of the HHP series grinders feature single – reduction chain drive transmissions for maximum efficiency and all the grinders use tapered roller bearings for low maintenance and long life. The HHP grinders have output capacities ranging from 1500 lbs. (680 kg) per hour to 7500 lbs. (3402 kg) so you can pick the model that fits best.

FEATURES

• MODEL: 548SS, 552SS, 7548SS, 7552SS, 1056SS, 1556SS Grinders (Chopper/Mincer).
• CONSTRUCTION: Stainless steel feed pan and polished stainless steel case, Cast iron hot tin dipped bowl, ring, and auger.
• FEED PANS ALL MODELS: For 5, 7.5, 10, and 15 HP units – Left-Hand stainless steel high back feed tray is standard.
• CAPACITY FEED PAN: 5 & 7.5 HP approximately 100 LBS. (45 KGS.); 10 & 15 HP approximately 115 LBS. (52 KGS.)
• GRINDING CAPACITY (APPROXIMATE): 548 & 7548– 55 LBS. (25 kgs.) per minute (1ST grind, 3/8″ plate) & 33 LBS. (15 kgs.) per minute (2ND grind, 1/8″ plate). 552 & 7552 – 70 LBS. (32 kgs.) per minute (1ST grind, 3/8″ plate) & 40 LBS.(18 kgs.) per minute (2ND grind, 1/8″ plate). 1056 & 1556 – 125 LBS. (57 kgs.) per minute (1ST grind, 3/8″ plate) & 80 LBS. (36 kgs.) per minute (2ND grind, 1/8″ plate).
• SWITCH: Watertight magnetic type with thermal overload and under voltage protection.
• POWER CORD: Option at (EC). Specify length.
• DRIVE SYSTEM: Silent (10-15 HP) or Roller link (5, 7.5 HP) chain drive over wide face sprockets insuring maximum power transfer from motor to auger.
• BEARINGS: Deep tapered roller thrust bearings carry all radial and thrust loads from auger eliminating friction.
• SAFETY: Magnetic safety interlock so machine will not operate when feed pan with welded bowl guard is removed.
• STANDARD FEATURES: Aluminum legs on 5 & 7.5 HP • Plated Steel legs on 10 & 15 HP • spurt guard • stomper • ring wrench • bowl guard on feed pan • operating and safety manual.
• OPTIONS (EC): Size 32, 52, 56 knives and plates • longer legs aluminum or steel with cross bracing • various motors (see chart) • solid stomper • connections for mixer-grinder system • Goodyear Eagle herringbone belt system • right-hand stainless steel high back feed trays available on request • power cord (specify length).
