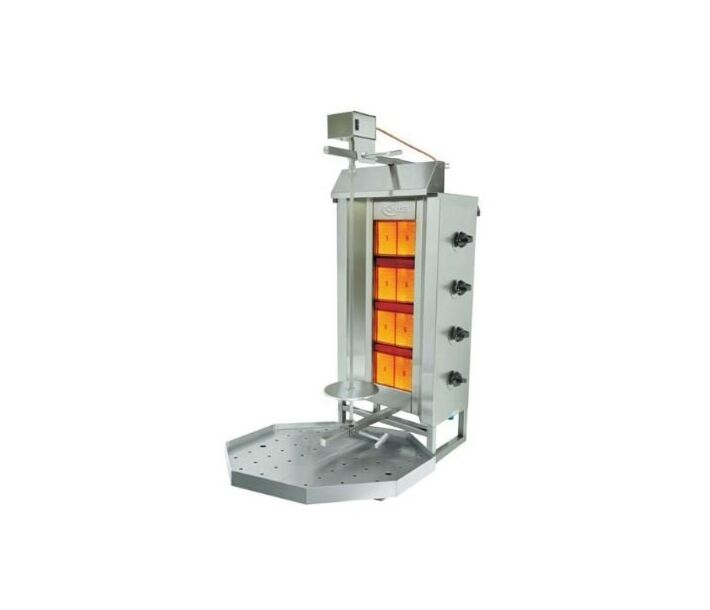

AX-VB4 176 lbs Gas Vertical Broiler

With gyros, shawarma, and doner kebabs becoming more and more of a popular eat; your Mediterranean restaurant will need a broiler that will effectively cook your meats and can be easily sliced for serving. The AXIS heavy-duty broiler comes with all-stainless steel construction and an enclosed motor.

Standard Features

• All heavy-duty stainless steel AISI 304 construction for hygiene
• Unitized base provides a strong and reliable professional appliance
• Infrared burners and can be operated individually
• Electric motor positioned at the top of the unit away from any fats
• Motor rotates both clockwise and counter-clockwise
• If the flame extinguishes, the thermo-elements will cut any gas flow
• Individual burner controls and removable drip tray are furnished
• With our unique E-Z slide dual-rail system, the operator can broil the meats closer or further from the heat source; as well as angled
• Available in three or four-burner configuration (AX-VB3/AX- VB4)
• 120-volt cord and plug required for motor rotation. NEMA 5-15P
• Broilers are shipped ready for natural gas installation. An LP conversion kit is included with each unit.

Technical Specifications

• Model: AX-VB4
• Spit Height: 30”
• Power:  44,382 BTU
• Meat Capacity: 176lb
• Ship Weight: 78lb
• Dimensions (WDH): 18” x 22” x 46”
• *Gas Connection: ½” NPT (pressure regulator is required but not included)
• *Gas Pressure: 7” – 8” W.C Natural Gas/ 10” – 13” W.C Propane
