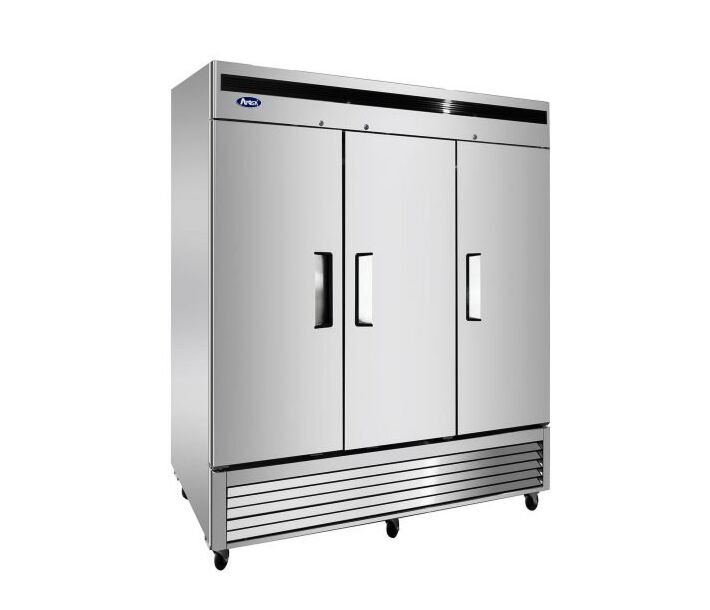

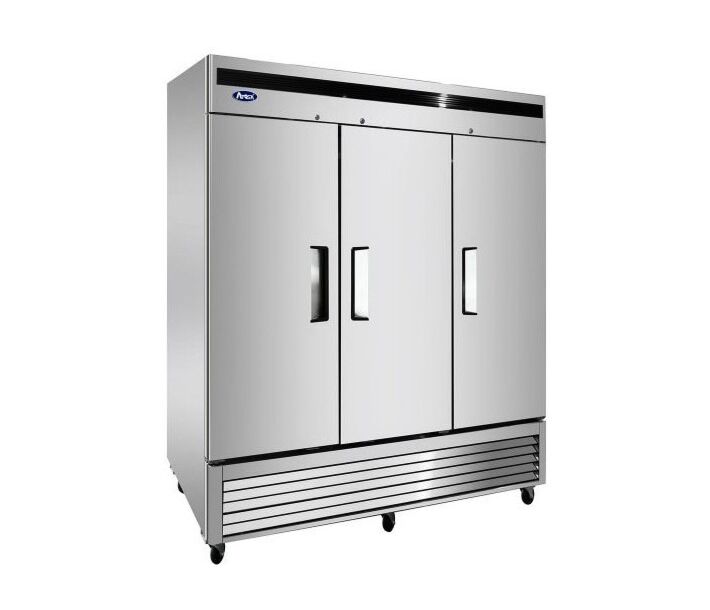

Atosa MBF8504GR 82" Bottom Mount Solid Three Door Reach-In Freezer

SKU
16000-727
  • Bottom mount compressor
  • Dixell digital temperature control
  • Efficient refrigeration system with R290 refrigerant
  • Epoxy coated shelves
  • Capacity of 68 cu. ft
Free Shipping
Product Status:
Sale
Certifications
icon-0 icon-1 icon-2

Atosa MBF8504GR 82" Bottom Mount Solid Three Door Reach-In Freezer

Energy Efficient Refrigeration System

This upright freezer is energy efficient and features a heavy-duty Embraco compressor that significantly lowers noise and vibration levels and can save you up to 40% more on energy compared to other types. The bottom-mounted compressor design is also ideal for hotter areas in busy kitchens.

This freezer’s refrigeration system is self-contained and designed to provide balanced refrigeration even under the most demanding of environments. The air-cooled system maintains product temperatures between 0 and 8°F thanks to the high-tech Dixell digital temperature controller.

NSF-approved flexible and magnetic door gaskets are also supplied with the freezer to help maintain internal temperatures as well as keep dust and other debris out.

Sufficient Storage

With a capacity of 68 cubic feet, you’ll have ample space for freezing and storing a large range of food products.

This triple door freezer comes equipped with nine epoxy coated wire shelves that prevent rust and corrosion making them perfect for moist environments. Each shelf has a load capacity of up to 155 pounds and comes pre-installed inside the unit.

High-Quality Details and Finish

Both the interior and exterior of this Atosa freezer are constructed out of a high quality stainless steel that makes the unit easy to clean and maintain, while offering the most modern appearance guaranteed to suit any commercial kitchen and storeroom.

This freezer features a self-closing and stay open door, which means that if the door is left open under 90°, it will automatically close completely saving you on energy, and helping preserve all the contents inside. However, if the door is left open over 90°, it will remain ajar making it much easier to load a large number of products at one time. Freezer doors also feature recessed handles that help prevent them from catching on anything or anyone while also making them easy to clean.

A set of four high quality 4-inch swivel casters are also pre-installed to help improve mobility. These industrial casters are designed to hold over 150 pounds of weight and come with brakes on two of the wheels for added safety and control.

The reach-in freezer also comes equipped with a standard stainless steel door lock for protecting and limiting access to food and drinks as needed.

Standard Features:

  • Bottom mount compressor units with
    environmentally friendly R-404A refrigerant
  • Stainless steel exterior & interior
  • Dixell digital controller
  • Maintains temperatures between -8°F – 0°F
  • LED interior light(s)
  • Recessed door handle(s)
  • Door lock(s) standard
  • Magnetic door gasket(s) standard for
    positive door seal
  • Pre-installed casters
  • Three(3) pre-installed shelves per section
  • Down duct refrigeration to ensure
    even distribution of air

Optional Features:

  • Extra shelves – includes 4 shelf clips per shelf
  • MBF8504 shelf part #: W0402196 left/right shelf,
    part #: W0402198 middle shelf

barcodeUPC: 784321289664

Specification

More Information
Brands Atosa
MFR # MBF8504GR
Voltage 115V
Hertz 60
Phase 1
Capacity 68 cu. ft.
Door Style Solid Door
Horsepower 1 HP
Number of Shelves 9
Number of Doors 3
Refrigerant R290
Temperature Range -8 to 0 degree F
NEMA L14-20P
Amps 6.2
Exterior Material Stainless Steel
Interior Material Stainless Steel
Width in Inches 81.9
Height In Inches 83.1
Depth In Inches 31.7
Warranty 2 Years Parts and Labor and 5 Years Only on Compressor

Resources and Download

SPECSHEET ( 2.07 MB)
