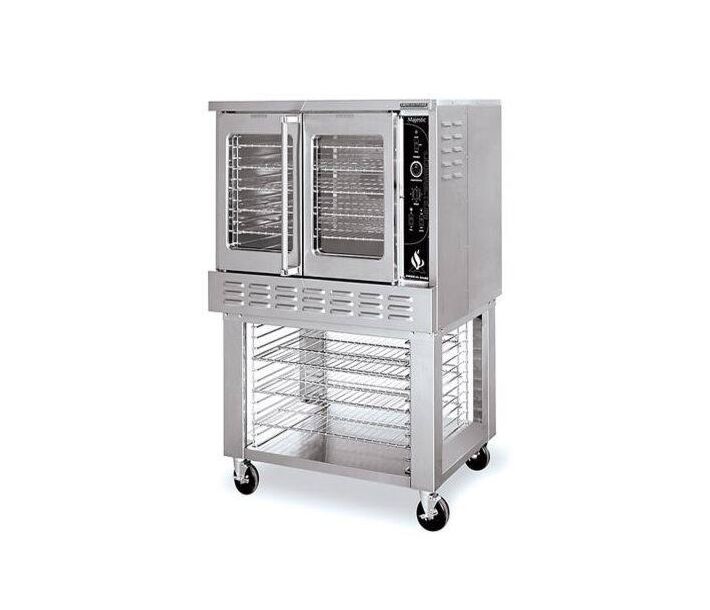

American Range M-1 40" Single Bakery Depth Full Size Stainless Steel Gas Convection Oven with 90,000 BTU - 26.0kW
American Range M-1 40" Single Bakery Depth Full Size Stainless Steel Gas Convection Oven with 90,000 BTU - 26.0kW
As low as CAD $326.33/mo. with EconoLease. Learn more
*Casters are sold separately*
- Stainless steel exterior
- 90,000 BTU
- Single deck, bakery depth manual controls, solid doors
- From room temperature to 350°F in 7 minutes or less
Image may not depict actual product. American Range is in the process of updating to new models.
Certifications
Resources and Download
American Range presents a new series of Heavy Duty Majestic Commercial Convection ovens. The all Stainless Steel exterior construction is both robust and durable. A unique oven cavity air flow system provides maximum efficiency and a large interior that accommodates full size sheet pans - front to back or side to side. Five racks with 12 positions allow for maximum capacity along with enhanced flexibility. Stainless Steel burners with firing rates of 60,000, 75,000 BTU/hr. and 90,000 BTU/hr. provide rapid heat up and recovery. Two 40 watt oven lights provide improved visibility of the interior. The American Range Majestic Series of Heavy Duty Commercial Convection Ovens is designed and built to provide superior performance and durability.
STANDARD FEATURES:
- 3/4” gas connection.
- All Stainless Steel front, sides and top.
- 50/50 double door, swings open 180 °.
- Stainless Steel, air-tight, door gaskets.
- 60,000, 75,000 BTU/hr. total heat output per oven on standard depth models.
- 90,000 BTU/hr. total heat output per oven on bakery depth models.
- Cavity width will accommodate full size sheet pan side to side on standard depth models, also front to back bakery depth models.
- 5 chrome racks with 12 position chrome rack guides.
- Pull-out control panel for easy access to control system.
- One year limited warranty, parts and labor.
Specifications
| MFR # | M-1 |
|---|---|
| Brand | American Range |
| Total Height | 66" |
| Total Width | 40" |
| Total Depth | 46" |
| BTU per Hour | 90,000 BTU |
| Temperature Range | 93°C to 260°C | 200°F to 500°F |
| Number of Burners | 2 Burners |
| Gas Inlet Size | One 3/4" NPT gas connections provided at rear | One 3/4" NPT gas pressure regulators are provided and must be installed |
| Horsepower | 1/2HP |
| Amps | 9A |
| Exterior Material | Stainless Steel |
| Net Weight | 640 lb. | 291 kg. |
| Product Type | Gas Convection Oven |
