HABCO Refrigerator Solid Swing SX Model SE24SX

SKU
16000-106
CAD $3,760.60
  • Uses R134a refrigerant
  • Finless Free&Clear Condenser Coil maximizes air flow over the compressor
  • Designed to hold 33°F to 38°F/0.5°C to 3.3°C
  • Automatic and stainless steel condensate control system

SE24SX: Designed to enhance the refrigerated storage or display experience to the highest standards of quality and performance.

Free Shipping
Certifications
icon-0 icon-1 icon-2

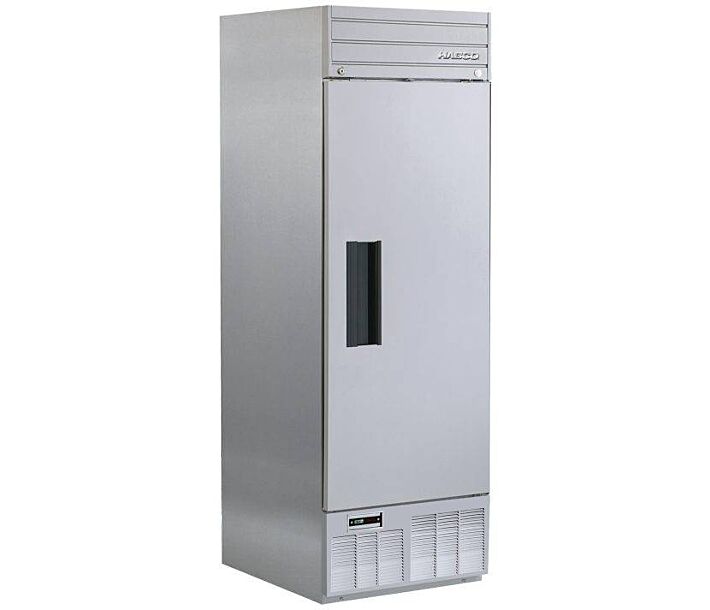

HABCO Refrigerator Solid Swing SX Model SE24SX

This refrigerator is designed for use in a two-foot wide section where increased capacity is a must. Solid Stainless Steel Xterior™ promotes a clean, professional image. Authentically front-breathing this model can be built-in top, bottom, rear, and both sides.

Refrigeration:

  • Self-contained Cassette® forced-air refrigeration employs R-134a refrigerant within a sealed capillary tube system.
  • Cassette® refrigeration is bottom-mounted and removable from the front for ease of maintenance. Refrigeration may be exchanged or upgraded without a mechanic. Designed to hold 33°F to 38°F (0.5°C to 3.3°C).
  • Priority, directed airflow provides optimum cooling and energy efficiency within the cabinet and exclusively at front of the unit for optimized heat exchange ventilation.
  • Finless, Free&Clear™ Condenser Coil maximizes air flow over the compressor, reduces energy consumption, and is non-clogging.
  • Corrosion-resistant coated evaporator coil.
  • Automatic, stainless steel condensate control system.
  • Quality, self-lubricating, and sealed motors with streamlined airflow provide quieter yet robust refrigeration.
  • Equipped with Digital Thermometer.

Cabinet:

  • Exterior – stainless steel front and sides.
  • Interior – NSF-approved white aluminum liner with stainless steel coved corner floor.
  • Ergonomic raised interior floor.
  • Space-Saving Design – air ventilation exclusively from the front of the unit.
  • Insulation – cabinet and solid doors are foamed-in-place with eco-conscious, polyurethane insulation.
  • Heavy-duty thread-in leveler legs

Doors:

  • Stainless steel front with white aluminum interior liner and large grip recessed handle(s).
  • Self Closing Swing Doors feature a hold-open position, spring back protection and are
    reversible on-location.
  • Magnetic gaskets are single-piece bead-mount construction easily removable for cleaning.
  • The door lock included is reversible on-location.

Lighting:

  • Auto-Actuated Interior Lighting

Storage:

  • Three (3) white coated shelves 19 1/2"W x 22 3/4" D (496mm x 578mm) are NSF approved.
  • Heavy-duty aluminum shelving pilasters will not peel or chip adjustment of 1/2" (13mm) increments.
  • Interior accepts typical 18" x 26" (458mm x 661mm) sheet pans.
  • NSF-7 is compliant with the storage and display of open food products.

Electrical:

  • Factory power cord installed for connection to a sole-use (dedicated) 115V/60Hz/1-Phase, 15 Amp circuit.



Specification

More Information
Brands HABCO
MFR # SE24SX
Voltage 115V
Hertz 60
Phase 1
Door Style Solid Door
Horsepower 0.25 HP
Number of Shelves 3
Number of Doors 1
Refrigerant R134A
Temperature Range 0.5 degree C to 3.3 degree C / 33 degree F to 38 degree F
NEMA 5-15P
Amps 2.7
Exterior Material Stainless Steel
Interior Material White Aluminum
Width in Inches 23.88
Height In Inches 78
Depth In Inches 31

Resources and Download

SPEC SHEET ( 569.71 kB)
